VF/VZ SERIES

Contact Now

Product Detail

Product Tags

Ordering Code

VF/VZ SERIES
Specification

Model	VF3130 VF3230	VF33(4/5)30	VF5120 VF5220	VF53(4/5)50	VZ5120 VZ5220	VZ53(4/5)50
Position and Way NO.	5/2 Way	5/3 Way	5/2 Way	5/3 Way	5/2 Way	5/3 Way
Effective Sectional Area	16mm2 (CV=0.89)	12mm2 (CV=0.67)	25mm2 (CV=1.40)	18mm2 (CV=1.00)	12mm2 (CV=0.67)	9mm2 (CV=0.50)
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-pressure	0.15~0.8MPa
Max. Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%
Power Consumption	AC: 4.5VA DC: 3W
Insulation & Protection Class	F Class. IP65
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cycle / Sec
Shortest Excitation Time	0.05 Second

Model	VF3130 VF3230	VF33(4/5)30	VF5120 VF5220	VF53(4/5)50	VZ5120 VZ5220	VZ53(4/5)50
Position and Way NO.	5/2 Way	5/3 Way	5/2 Way	5/3 Way	5/2 Way	5/3 Way
Effective Sectional Area	16mm2 (CV=0.89)	12mm2 (CV=0.67)	25mm2 (CV=1.40)	18mm2 (CV=1.00)	12mm2 (CV=0.67)	9mm2 (CV=0.50)
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-pressure	0.15~0.8MPa
Max. Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%
Power Consumption	AC: 4.5VA DC: 3W
Insulation & Protection Class	F Class. IP65
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cycle / Sec
Shortest Excitation Time	0.05 Second

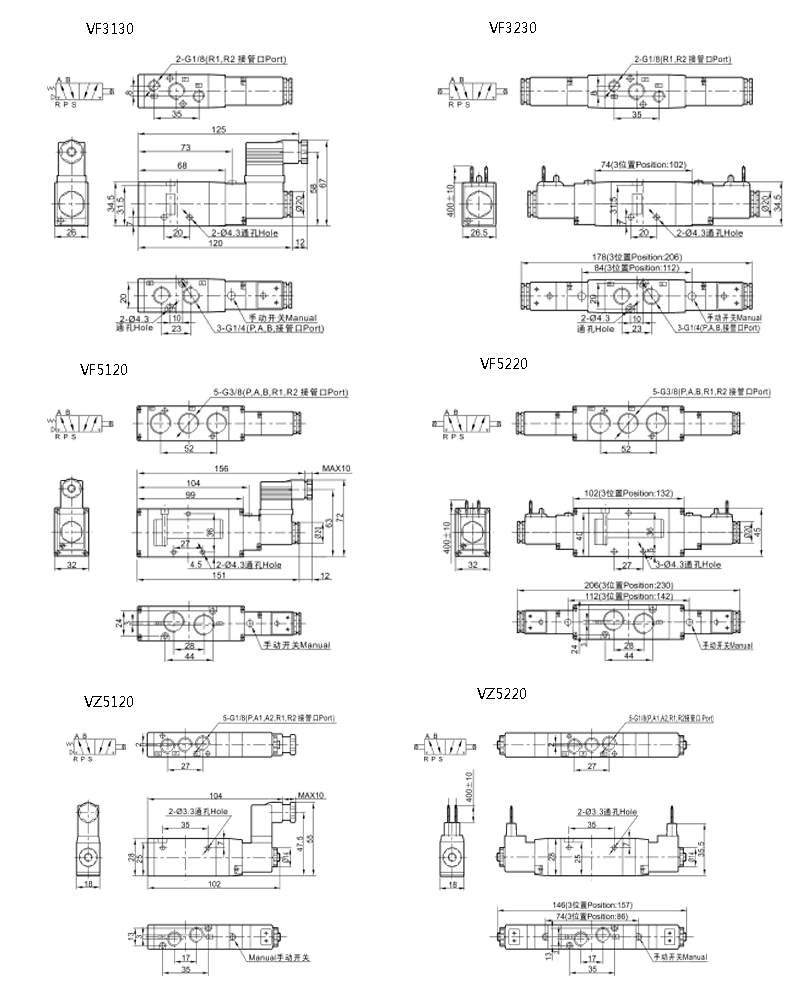

Overall Dimension

VF/VZ SERIES
