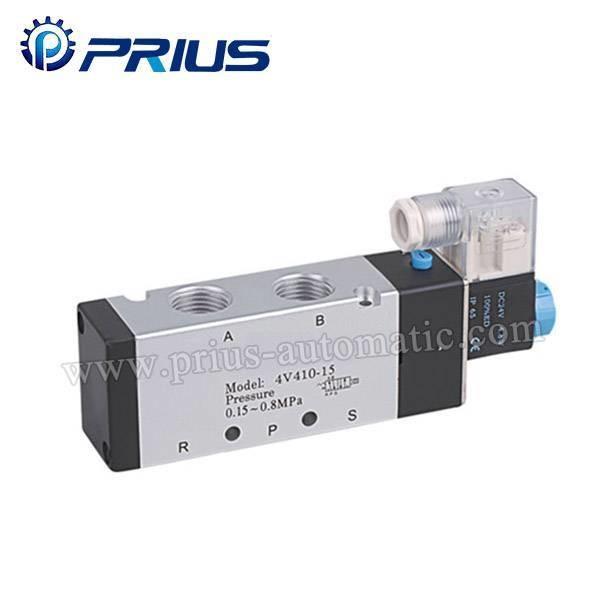

4V400 Solenoid Valve

Ordering Code Specification Model : 4V410-15,4V420-15,4V430-15,4V430E-15,4V430P-15,4A410-15,4A420-15,4A430-15,4A430E-15,4A430P-15,3V410-15,3V420-15,3A410-15,3A420-15

Valve Type : 5/2 Way,5/3 Way,3/2 Way

Effective Sectional Area : 50m㎡(CV=2.79),30m㎡(CV=1.68),50m㎡(CV=2.79)

Port Size : Air Inlet=Air Outlet=Exhaust=G1/2″

Working Medium : 40 Micron Filtered Air

Motion Pattern : Inner Guide Type

Working-pressure : 0.15~0.8MPa

Max. Pressure : Re

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Ordering Code

Specification

Model	4V410-15	4V420-15	4V430-15	4V430E-15	4V430P-15
	4A410-15	4A420-15	4A430-15	4A430E-15	4A430P-15
Valve Type	5/2 Way		5/3 Way
Effective Sectional Area	50m㎡(CV=2.79)		30m㎡(CV=1.68)
Model	3V410-15	3V420-15	3A410-15	3A420-15
Valve Type	3/2 Way
Effective Sectional Area	50m㎡(CV=2.79)
Port Size	Air Inlet=Air Outlet=Exhaust=G1/2″
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-pressure	0.15~0.8MPa
Max. Pressure Resistance	1.2MPa
Operating Temperature	5~50℃
Voltage Range	±10%
Power Consumption	AC:5.5VA DC:4.8W
Insulation & Protection Class	F(class) IP65
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cycle / Sec
Shortest Excitation Time	0.05 Second

Overall Dimension
4V400 Solenoid Valve

4V400 Solenoid Valve
