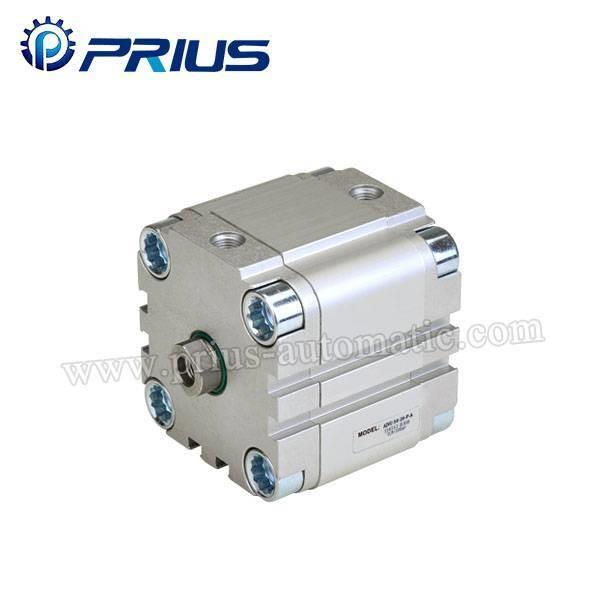

ADVU compact clinder

Bore : 16,20,25,32,40,50,63,80,100

Action : Double Acting,Single Rod/Double Rod

Fluid : Air

Ensured Pressure Resistance : 1.5MPa

Operating Pressure Range : Array,Array

Ambient and Fluid Temp : -20~80℃ (No freezing)

Port Size : M5,G1/8″,G1/4″

Piston Rod Thread : Array,Array

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Ordering Code

Specification

Bore (mm)

100

Action

Double Acting, Single Rod/Double Rod

Fluid

Air

Ensured Pressure Resistance

1.5MPa

Operating Pressure Range

ADVU - -P-A

0.12~1.0MPa

0.1~1.0MPa

0.08~1.0MPa

0.06~1.0MPa

ADVU - -P-A-S2

0.13~1.0MPa

0.12~1.0MPa

0.1~1.0MPa

0.8~1.0MPa

Ambient and Fluid Temp.

-20~80℃ (No freezing)

Port Size

G1/8″

G1/4″

Piston Rod Thread

Female Thread

M10

M12

Male Thread

M10×1.25

M12×1.25

M16×1.5

M20×1.5

Cushion

Rubber Bumper

Overall Dimension

Dimension Sheet

Bore	D1	E	EE	H	L2	L3	L4	MM	PL	RT	T2	TG	ZJ	CC1
16	6	29	M5	1	38	4	18.5	8	8	M4	4	18	41	6
20	6	35.5	M5	1.5	38	4	18.5	10	8	M5	4	22	41	8
25	6	39.5	M5	1.5	39.5	4	18.5	10	8	M5	4	26	43.5	8
32	6	49.5	G1/8	2	44.5	5	22	12	8	M6	4	32	49.5	10
40	6	59.5	G1/8	2.5	45.5	5	22	12	8	M6	4	42	51	10
50	6	68	G1/8	2.8	46.5	5	22	16	8	M8	4	50	53	14
63	8	86	G1/8	4	50	6	26	16	8	M10	4	62	56	14
80	8	106	G1/8	4	56	6	26	20	8.5	M10	4	82	62	17
100	8	128	G1/4	5	66.5	8	26	35	10.5	M10	4	103	76.5	22
